該管接頭由高純度氧化鋁纖維板制成，專為OTF-1200 x分體式管式爐設計，用于ACCPET 1“OD加工管。
技術參數

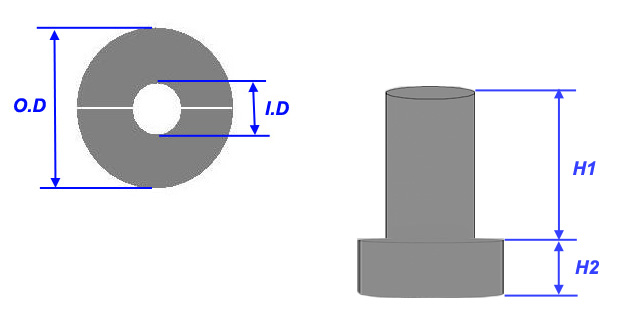

φ25變徑壓環
規格尺寸
EQ-F-adaptor-D2-1
(50mm-25mm)
EQ-F-adaptor-D60-1
(50mm-25mm)
EQ-F-adaptor-D80-1
(50mm-25mm)
H1
80mm
80mm
80mm
H2
20mm
20mm
20mm
I.D
25mm
25mm
25mm
O.D
50mm
60mm
80mm
φ50變徑壓環
|
規格尺寸 |
EQ-F-adaptor-D80-2 (80mm-50mm) |
EQ-F-adaptor-D4-2 (100mm-50mm) |
|
|
H1 |
80mm |
80mm |
|
|
H2 |
20mm |
20mm |
|
|
I.D |
50mm |
50mm |
|
|
O.D |
80mm |
100mm |
φ60變徑壓環
規格尺寸
EQ-F-adaptor-D80-60
(80mm-60mm)
EQ-F-adaptor-D4-60
(100mm-60mm)
H1
80mm
80mm
H2
20mm
20mm
I.D
60mm
60mm
O.D
80mm
100mm
